Open Face Series

Facts

Power Supply

415 Volts 15 amps

Cabin

Fully insulated panel colorbond finish

Base

Existing concrete floor

Machinery

Roof mount

Air Inlet Fan

Extraction only, supply air remote

Air Exhaust Fan

600mm axial antistatic inline impeller

2.2kw 3 phase motor

Lighting

5 T8, 6000K Daylight light tubes per light bank

Filters

Glassfibre exhaust filters

Protective Booth Coating

Easy peel protective booth coating

Control System

User friendly AS/NZS 4114 compliant

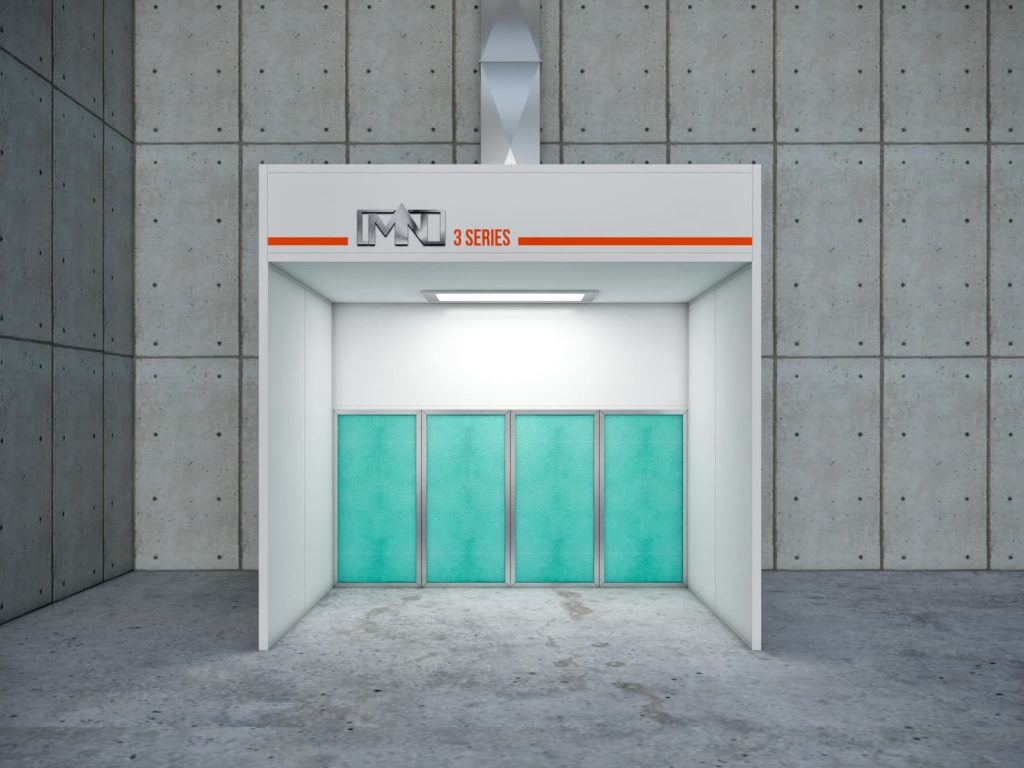

Open Face Series

The Open Face spray booth is the most affordable product line in our industrial range.

Effortlessly assembled on an existing concrete floor the Open Face booth offers easy

product and personnel access for a variety of product sizes and applications.

Providing a safe, clean and controlled environment, the Open Face spray booth draws fresh air through the open front and exhausts harmful vapors and fumes through the rear wall extraction system providing high-efficiency collection and filtration.

Readily available in several standard sizes, MN Spraybooths offers expandable configurations to meet your individual business needs and purpose.

Standard size models:

Model	3 Series	4 Series	5 Series
External Dimensions W x H x D	3000 x 3000 x 3000	4500 x 3000 x 3000	5250 x 3000 x 3000
Internal Dimensions W x H x D	3000 x 2400 x 2400	4500 x 2400 x 2400	5250 x 2400 x 2400
Fan Diameter	600 x 600	700 x 700	600 x 600
Fan(s)	1	1	2
Light Bank(s)	1	2	2
Filters	4	6	7
