Automotive Semi Downdraft

Facts

Power Supply

415 volts 32 amps

Cabin

Fully insulated panel colorbond finish

Base

Existing concrete floor, no excavation

Air Inlet Fan

Centrifugal type backward curve impeller

5.5kw direct drive motor

Air Exhaust Fan

Reinforced lightweight nylon, 45° pitch antistatic fan

4kw belt driven motor

Air Inlet Volume

Rated airflow 24,579 CFM

Air Exhaust Volume

Rated airflow 26,486 CFM

Lighting

50 T8, 6000K Daylight light tubes

Exhaust Filers

Glassfibre exhaust filters

Inlet Filters

560G fibre inlet ceiling filters

Entry Doors

Steel framed insulated bifold for wide opening with glazed viewing glass

PA Door

Fully insulated single door with glazed viewing glass

Protective Coating

Easy peel protective booth coating

Control Panel

User friendly AS/NZS 4114 compliant

Arrangements

Fuel Type

Natural

Gas

LPG

Machinery

Roof mount

Floor mount

Control System

Semi Auto Analogue

Touch Screen

Accessories

Can be purchased separately

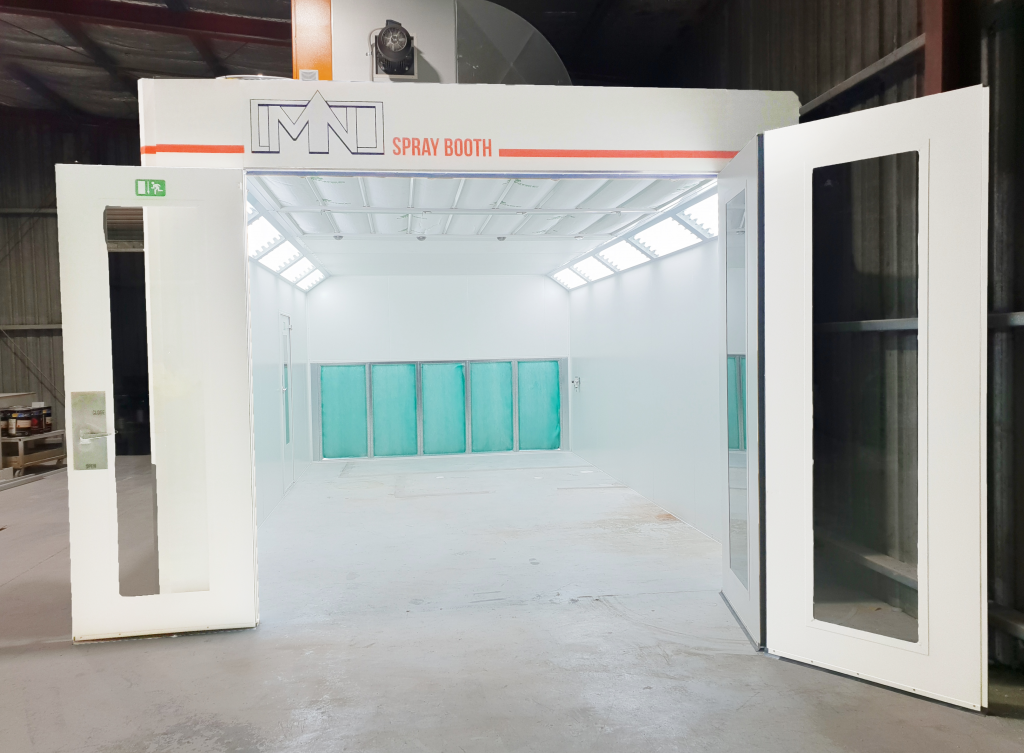

Automotive Semi Downdraft

Designed for customers with light to medium workloads the Semi Downdraft spray booth provides a safe, clean and dust free environment.

The Semi Downdraft is a positive pressure spray booth available as heated or non-heated and is effortlessly assembled on an existing concrete floor eliminating the need of an extraction pit.

Available in various sizes and configurations with added options and accessories to suit, MN Spraybooths can design and manufacture to virtually any size and configuration to suit individual business needs.
